Footwear Testing Equipment Insole Back Part Stiffness Testing Machine

Name: Footwear Testing Equipment Insole Back Part Stiffness Testing Machine
Brand: SKYLINE
Price: 1 USD

China Footwear Testing Equipment Insole Back Part Stiffness Testing Machine factory

Brand Name : SKYLINE

Model Number : SL-L13

Certification : CE

Place of Origin : China

MOQ : 1 unit

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 1 pcs/ month

Delivery Time : 15 working days

Packaging Details : plywood case

SKYLINE : Leather Stiffness Tester

Specimen Load : 10N 0.2N

Scale : 0.1 ~ 10mm

Diameter abrasive wheel : 150 450L (mm)

Emery cloth : 60 #, 425 473 1.5 (mm)

Set rotation : 84 rotate (about 40M)

Standard : SATRA TM 58

Contact Now

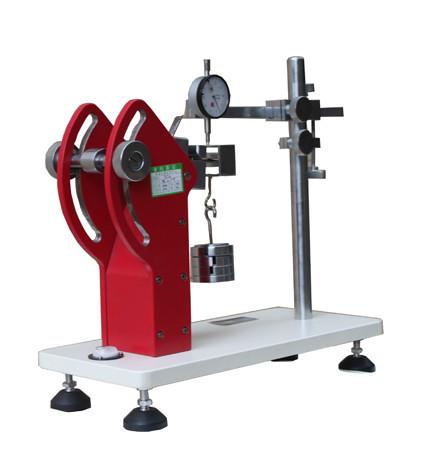

Footwear Testing Equipment Shoes Insole Backpart Stiffness Tester

Product introduction

The insole backpart stiffness tester is used to testing the stiffness in the longitudinal direction of steel shanks used for the reinforcement of the waist region of shoes.The shank is clamped at its heel end and bent as a cantilever beam by masses added to its forward end.

The amount of bending is measured and used to calculate the flexural rigidity of the shank.

Leather stiffness tester machine is used to measure the stiffness in the longitudinal direction of steel shanks used for the reinforcement of the waist region of shoes,the shank is clamped at its heel end and bent as a cantilever beam by masses added to its forward,then calculate the flexural rigidity of the shank.

Specification

Rotation Angle of Lower Jaw Seat	30degree
Length of Measuring Clip	60±0.02mm
Depth of Clamp for Front End	12mm
Dial Gauge	0~10mm(min graduation0.01mm )
Dead Weight	200+/-1g×4
Dimension(W×D×H)	37x17x35cm
Weight	12kg
Standards	SATRA TM 58

SL-L13 Insole Backpart Stiffness Tester.pdf
